Fortecho Luxe specifications

Fortecho provides the world’s premier wireless artwork & valuable asset monitoring solution.

Fortecho enables artworks and their locations to be monitored discretely 24/7 in real-time for theft, damage, and dangerous environmental change. Designed to be fully integrated with existing security infrastructures including CCTV, SMS, VMS, digital mobile radio and intruder detection systems.

Protection and Climate Sensors

We specialise in Active RFID technology, the most versatile and suitable tool for protecting assets in dynamic environments. Our sensors monitor for:







Relative Humidity


Sophisticated decorated interior with x ray

The Software

The Fortecho software is highly sophisticated but simple to use. The software controlling and monitoring sensors at store level is hosted by a PC in a control room. It integrates with your security and video management systems to consolidate all alarms and quicken response times. Features include:

Computer illustration

Environment Monitoring

Designed for conservators, curators and collection managers, the environmental monitoring module is a popular extension to the core Fortecho system. Environmental monitoring provides a digital record of the exact conditions an artwork has been kept in. Over time this forms a crucial cornerstone of the artwork’s identity. Unlike traditional climate-monitoring systems, our miniature wireless sensors record temperature, relative humidity and LUX at the exact location of the artwork—on, next to, or even inside the object. Coupled with reliable protection from theft and tamper Fortecho Solution offers a holistic approach to collection management.

List of main features:


How do we protect your artworks?

Our tags communicate wirelessly with long-range RFID receivers. Tags are extremely versatile, but their shape, size and functionality differ depending on the intended application.

Fortecho tags attach discretely and safely onto, next to, or even inside artworks. They are completely hidden from view and are controlled remotely via the Fortecho software to minimise handling time and disruption.

Our tags work in real-time to detect movement, damage, tamper (whether the tag has been removed from the artwork or object) and the location of the asset or personnel. As standard, tags check in every minute but send a burst of four messages a second in the event of an activation.

We also deploy PIR, VOS or laser devices fitted with our I/O wireless tags to monitor for proximity/approach. Similarly, we use pressure plinth/kit systems for sculptures and small objects where traditional tag attachment isn’t possible.

Our Products

Paintings and 2D Artwork
Sculptures and 3D Artworks
Display Case and Objects
Proximity and Touch

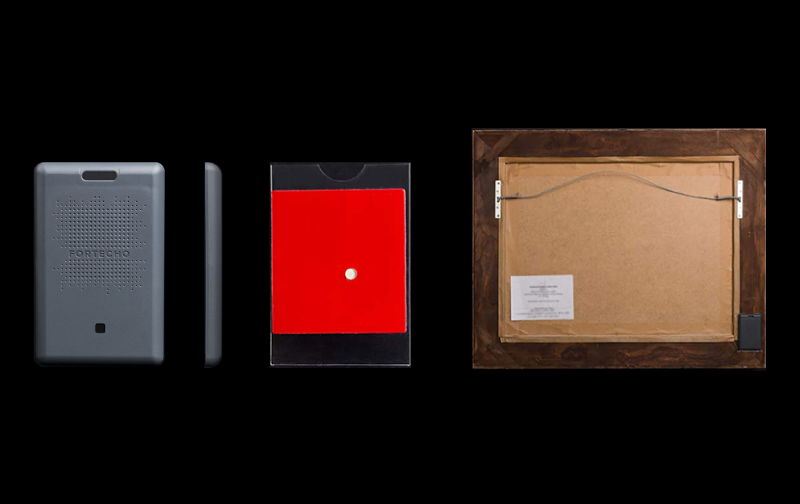

IS TGP Movement Sensing Tag

Vibration-Sensing Tag

Paintings and 2D Artwork

Our IS-TGPKIN tag detects planar movement in any direction.

IS TGP Movement Sensing Tag

Movement-Sensing Tag

Paintings and 2D Artwork

The slimline IS-TGPMS tag detects vibration within parameters of sensitivity set by the user.

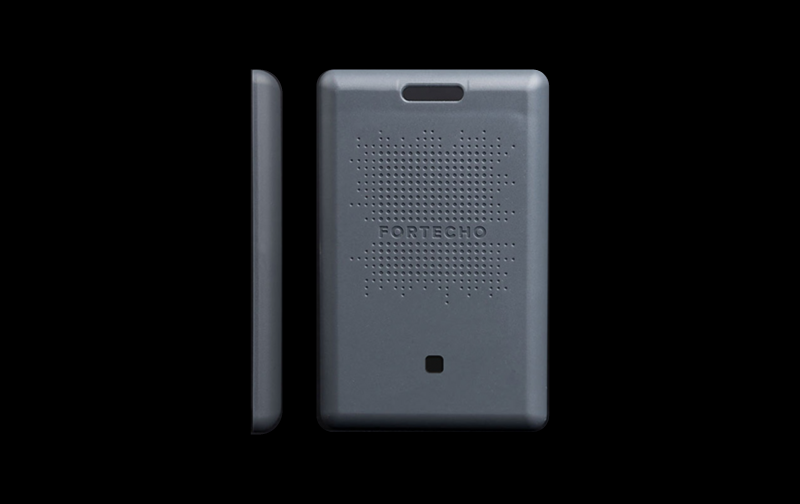

IS TGPTH Slimline Mico Climate Tag

Micro-Climate Tag

Paintings and 2D Artwork

The IS-TGPTH accurately detects changes in temperature and relative humidity...

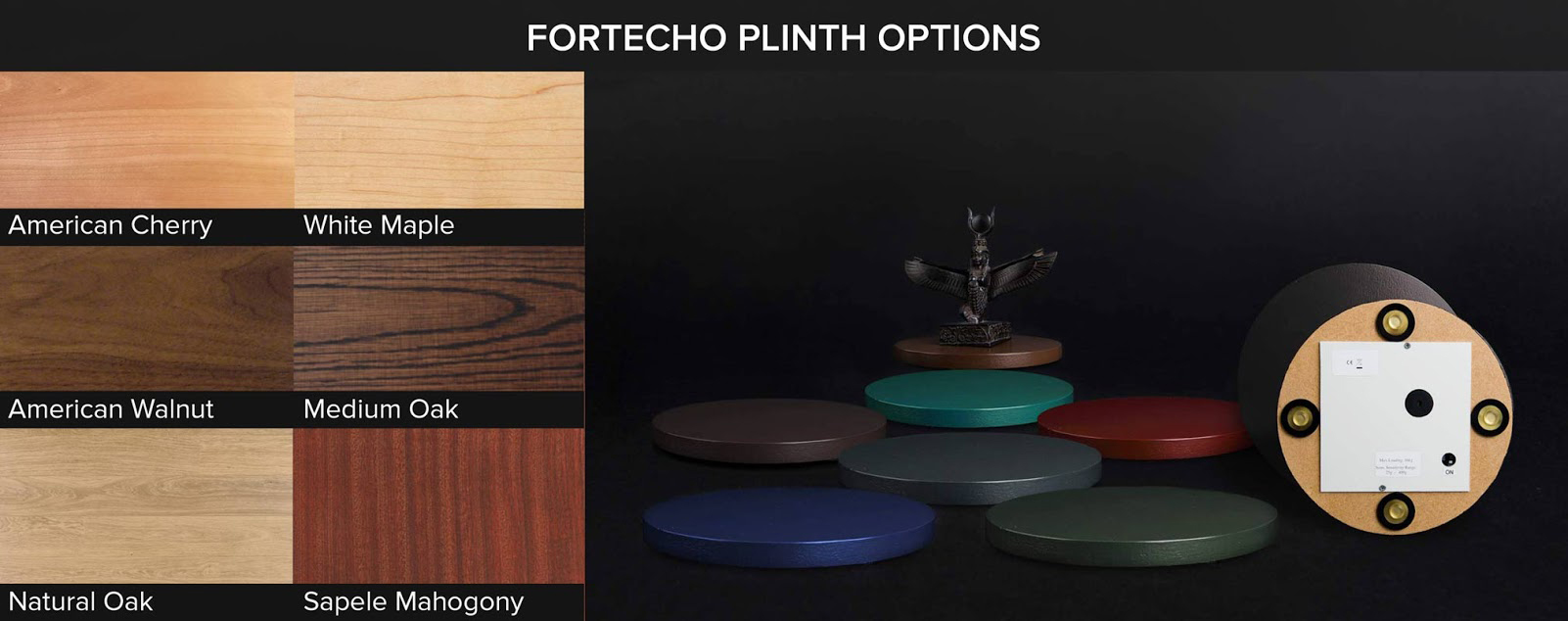

Fortecho Solutions Pressure Plinths

Pressure-sensing plinths

Sculptures and 3D Artworks

Plinth units are available in custom shapes, sizes and finishes.

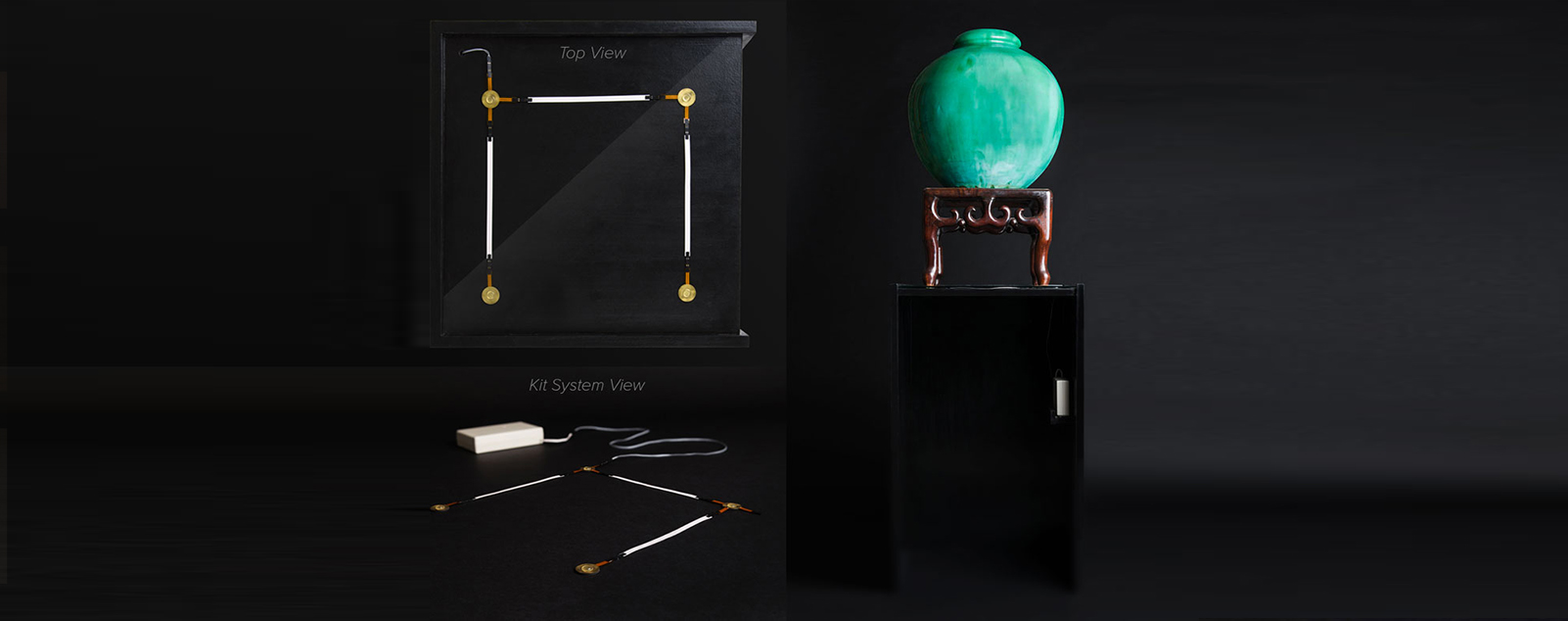

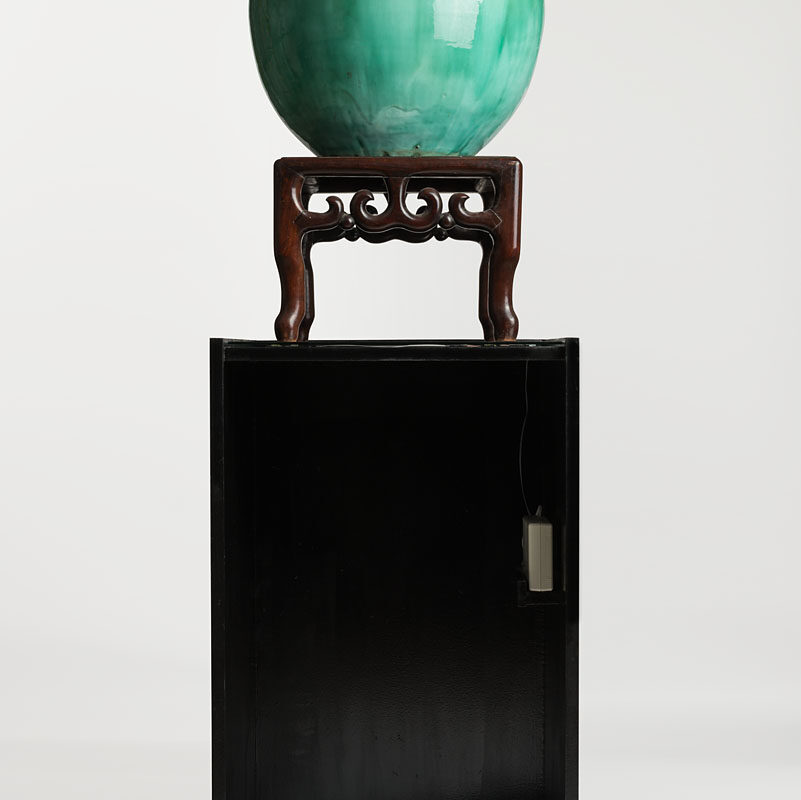

Pressure Kit Systems

Pressure-sensing kits

Sculptures and 3D Artworks

Our pressure-sensing kits are as above but consist of sensors that can be discretely incorporated...

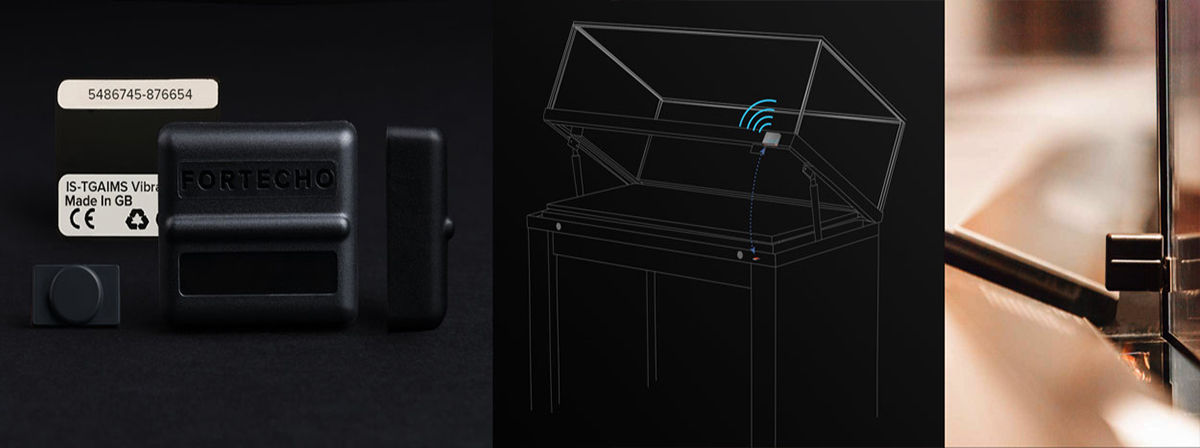

Vibration Sensing Display Case Tag IS TGAI

Vibration-Sensing Display Case Tag

Display Case and Objects

The IS-TGAIMS detects vibration within parameters of sensitivity set by the user.

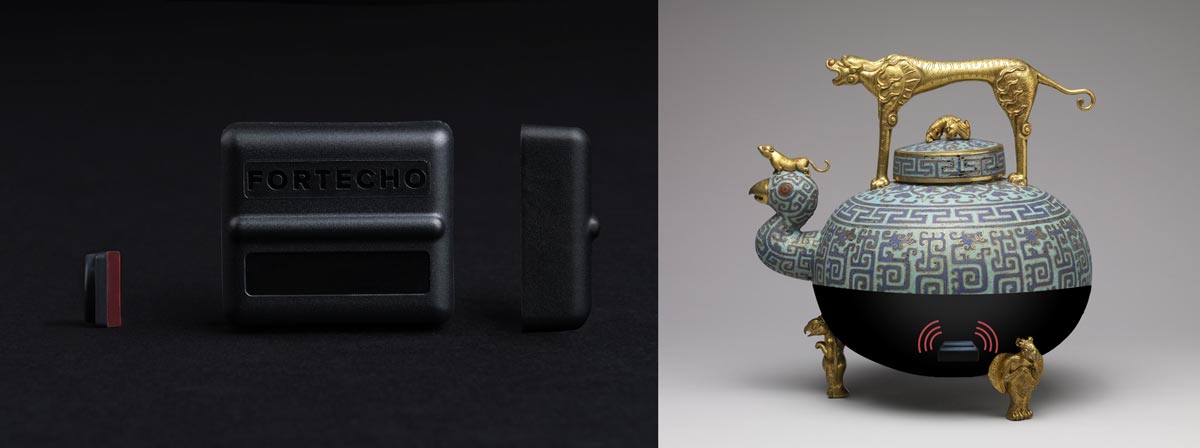

Motion sensing object tag

Movement-Sensing Object and Case Tag

Display Case and Objects

The IS-TGAIKIN detects planar movement in any direction...

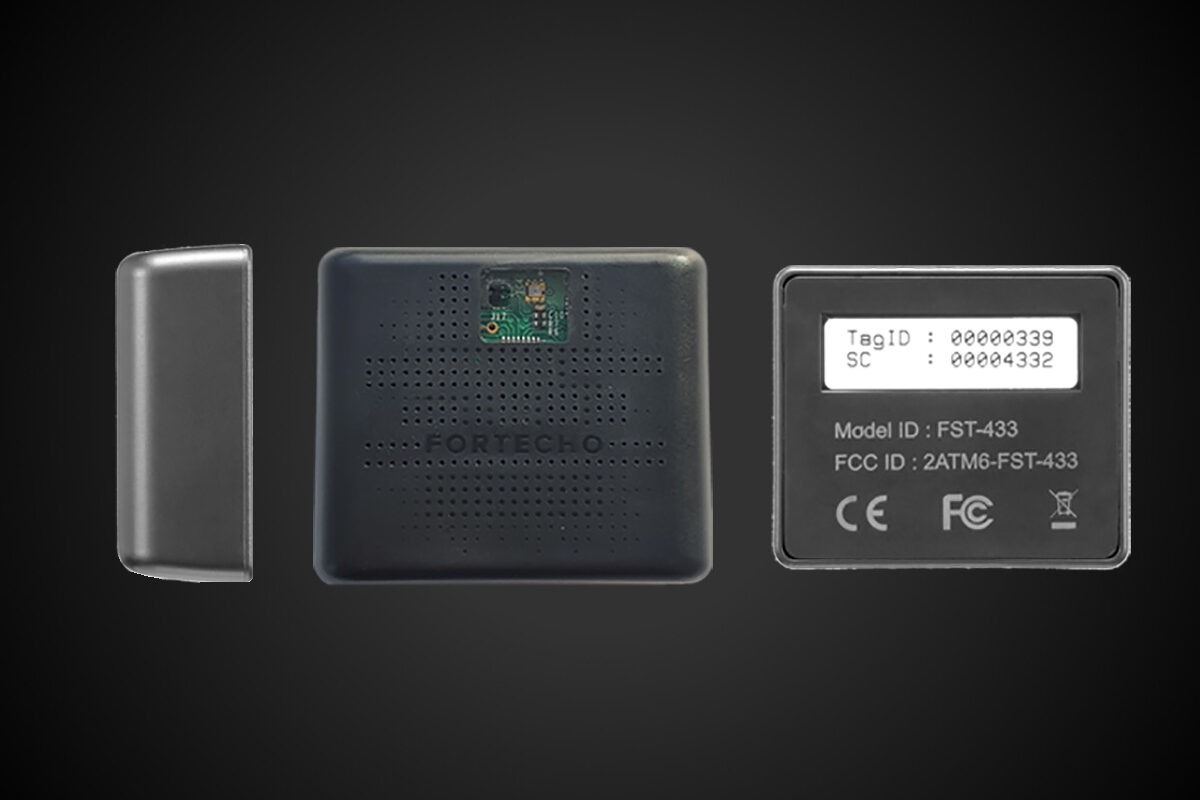

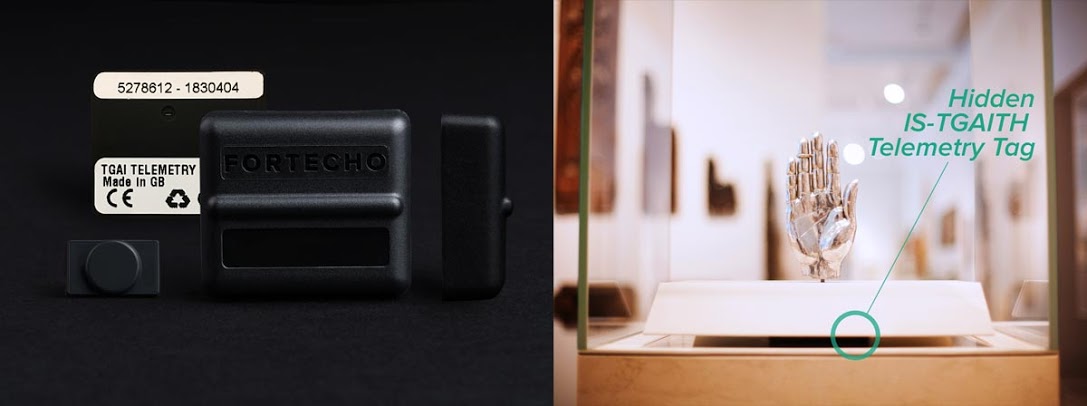

Micro climate case tag

Micro-Climate Case Tag

Display Case and Objects

Our IS-TGAITH tag accurately detects changes in temperature and relative humidity...

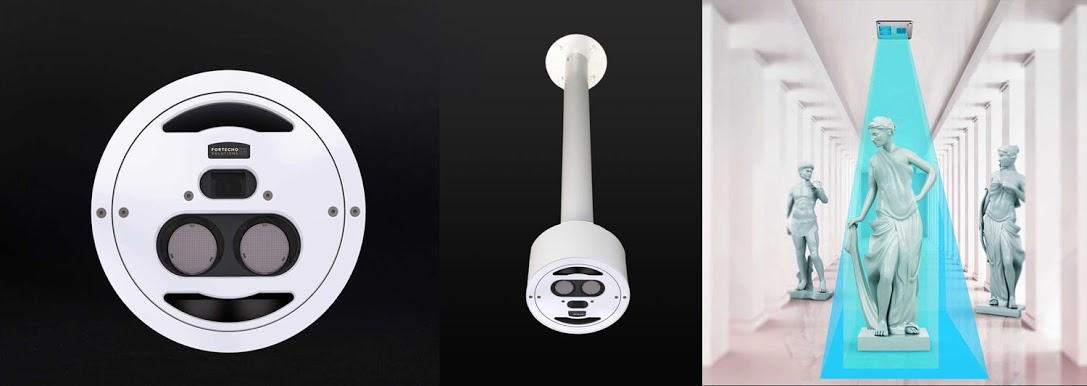

Volumetric object surveillance example

VOS (Volumetric Object Surveillor)

Proximity and Touch

Analyses changes in infrared light reflectivity within a 3D volume surrounding objects from above.

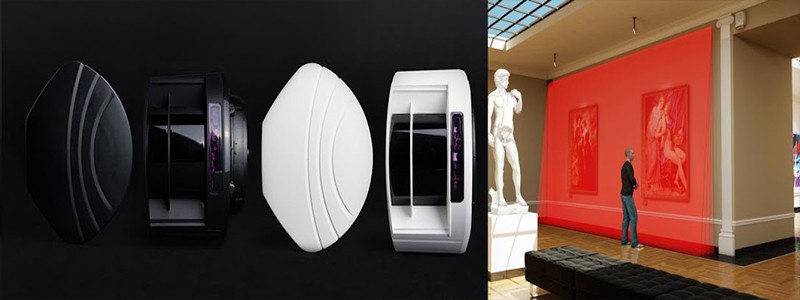

Wall mounted laser scanners

Laser Scanners

Proximity and Touch

Our IS-LZR600 laser-protection sensors create invisible curtains to prevent touching.

PIR Sensor IS EX35R

PIR Sensor

Proximity and Touch

Our IS-LZR600 laser-protection sensors create invisible curtains to prevent touching.

Panic and Duress Tag Fob - IS TGF1

Panic/Duress Key Fob


Duress / Personnel IS-TGF tags are small and discrete, and send alarm streams when their activation button is pressed.

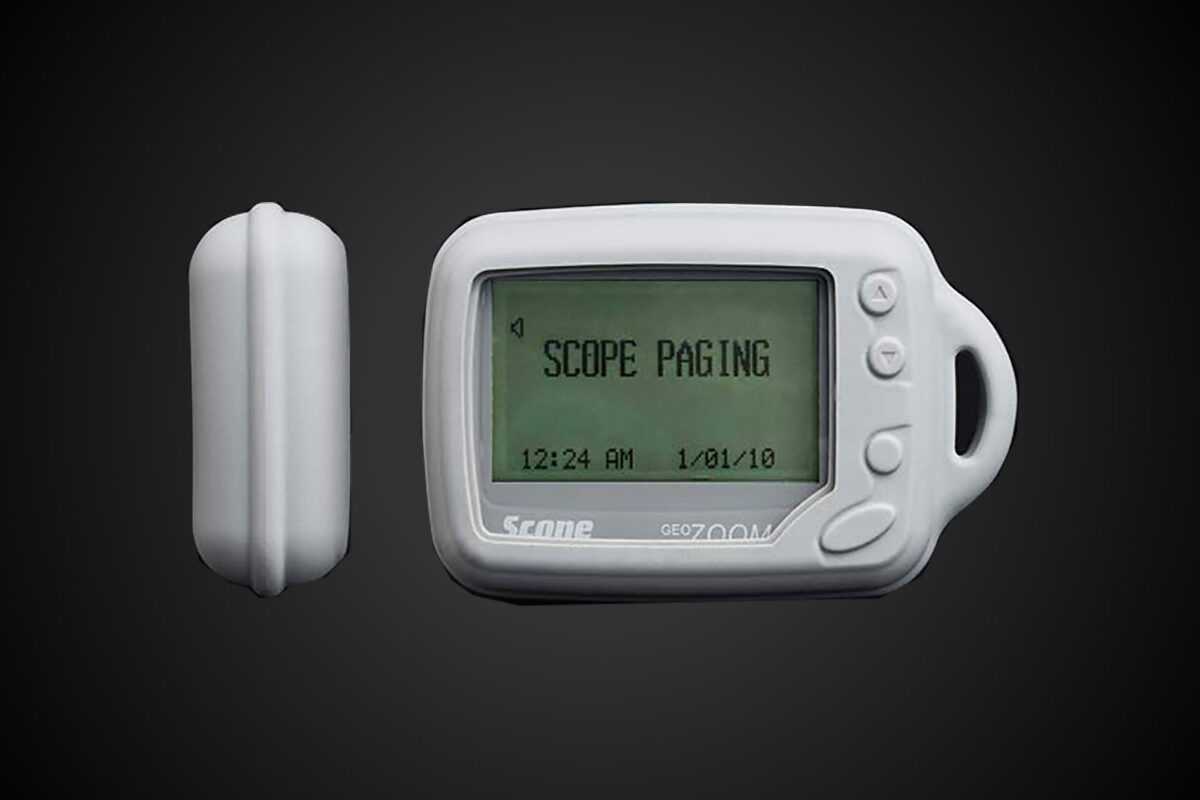

Pager Radio images

Pagers + TETRA Radios


Pagers and radios fully integrated with the Fortecho system are sent immediate and detailed alarm data when a tag...

View More


Sensors communicate wirelessly with a network of RFID Receivers or ‘Readers’ at distances of 15-70m indoors, or up to 200m outdoors. Readers create a cocoon of RFID coverage within which all assets are protected. Because tags communicate at 433 MHz, encrypted messages penetrate through most materials (including walls, floors and ceilings), allowing readers to be easily hidden inside walls, floors and furniture, though some of our clients prefer to mount them visible as a deterrent. Only a few receivers are required to cover any given space.

The FS-1000

The new FS-1000 reader detects and decodes RFID (radio frequency identification) signals from Fortecho Solutions’ range of active RFID tags.

Dual Antenna technology provides RF redundancy coverage, giving a better wireless range. This reader is ideally suited for use in systems that track and secure tagged assets such as artwork, containers, plant and machinery or high-value assets, or for monitoring personnel in health and safety or security applications. The FS-1000 readers can be used to create RFID networks within buildings. For more robust and rigorous uses, they can be deployed externally across large complexes, such as container ports, warehouses or external yards if suitably protected.
The tag data and reader status information is fed into the end-user application enabling complete management of all tagged assets and the automation of business decisions about them based on accurate and near real-time knowledge of their location and condition.

Software Interfaces

Fortecho integrates with most intruder detection, CCTV, security management (SMS) and video management (VMS) software systems as well as TETRA radios. This allows consolidated alarms, fewer screens, fewer cables, automatic activation and control of CCTV cameras, real-time object alarm information overlaying video footage, and more.

Alarms can be presented with the following information: artwork or object image, artwork or object information, location image, alarm priority, event timings, suggested action, reader information and floor map, alarm data transmitted to pagers and/or security radios and zonal tracking data.

Integrated Technologies

Physical Integration

For non-software systems, Fortecho integrates via our ADR IO boards using physical relay outputs (NC or NO). Adding a Variable Input Output Module (VIOM), it is possible to monitor the processing PC and send out an alert in case of a crash or power failure.
